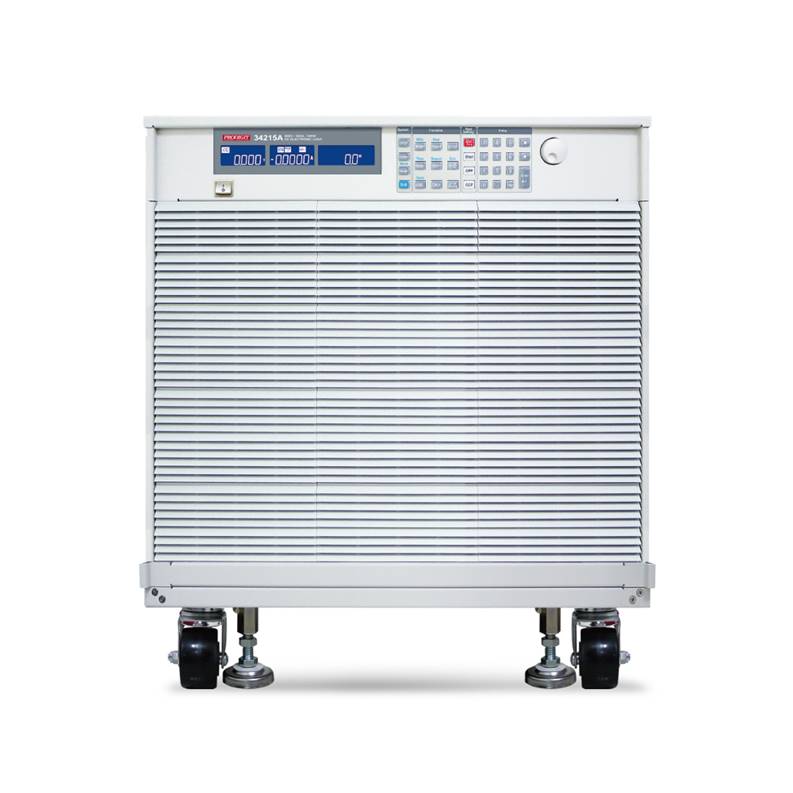

34215A
Compact High Power DC Electronic Load 600V,480A,15KW
Description
l
34000A Series has its own control and display panel, CC /
CR / CV / CP / Dynamic modes, 150 sets Store / Recall memory which provides
load set-up more efficiently, also can be remote controlled via GPIB、RS232、USB and LAN interface.
l
SHORT time setting and SHORT_VH, SHORT_VL setting
function, also can measure Short Voltage and Current.
l
Dynamic can be simulated under CC, CP mode. The current
Rise / Fall slew rate can be adjusted individually and there is an external
signal input for a Arbitrary Waveform to simulate load current.
l
Single key for OCP、OPP test function will be more
efficiency and accuracy on OCP、OPP testing.
l
Programmable Load ON/OFF voltage, GO/NG meter check,
Voltage meter display ” + “ or “ – “ is selectable and 150 sets
Store/Recall larger memory is much advance feature for each different
application.
l
150 sets test parameter and status storage function, user
can recall the storage memory real time in accordance with the auto sequence
requirement.
l
Maximum Voltage up to 1000V provide an idea testing
solution for Power Factor Correction test.
l
Master / Slave control units maximum up to 1 MASTER, 7
SLAVE.
Features
l
With parallel
function maximum power up to 320KW.
l
Maximum up to 8
units master / slave parallel control.
l
5 digit V/A/W Meter.
l
High-speed
measurement and communication transmission.
l
Large LCD Display、setting values can be adjusted by rotary knob or push button.
l
Voltage、Current and Watt value can be displayed simultaneously.
l
Capable for Power
Factor Correction (PFC) Test. (for 600V,1000V models)
l
OCP、OPP test function automatically.
l
Power ON status can
be set.
l
CC, CR, CV, CP ,
CC+CV , CP+CV , Dynamic and Short
operation mode.
l
SHORT time setting.
l
Protections against
I,W,°C and over-voltage alert.
l
Voltage meter
display the polarity positive（”＋”）or negative（”－”）is selectable.
l
Optional Interface :
GPIB、RS232、USB、LAN.
l
Support MPPT CC、CR、CV test function for solar panel
l
0.7V @ 1000A is on
Static condition, and the starting voltage must be greater than 5V, if on
Dynamic condition that is 5V @ 1000A
l
New waveform
generator plug in model 9923 adds user programmable battery discharge current
waveform simulation to Prodigit DC Loads.

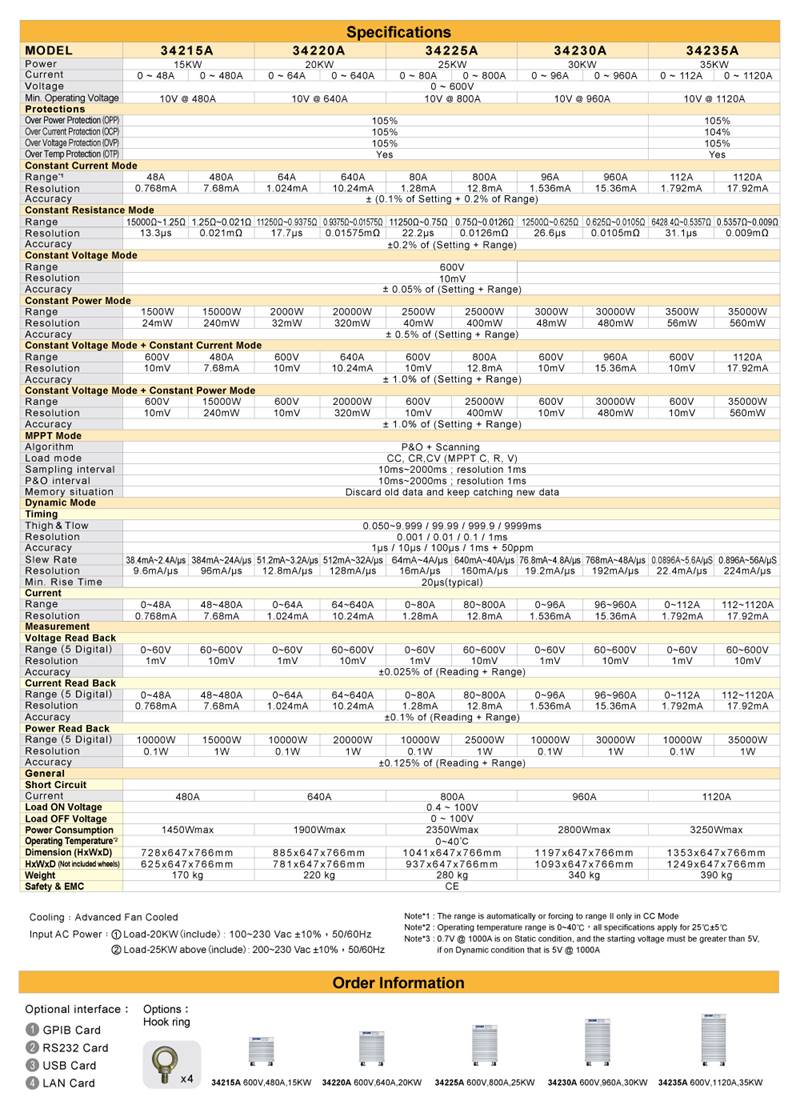

Specifications
